[ML] MNIST 모델 테스트

지난번 포스팅에서 학습한 MNIST 모델은 테스트해 보려고 한다.
테스트는 MNIST 모델을 로드하고 PyQt5 툴을 사용하여 사용자가 입력한 숫자를 모델에 태워서 원하는 결과가 나오는지 확인하였다.


import sys
from PyQt5.QtWidgets import *
from PyQt5.QtGui import *
from PyQt5.QtCore import *
import numpy as np
import tensorflow as tf


class MyApp(QMainWindow):

    def __init__(self):
        super().__init__()
        self.image = QImage(QSize(400, 400), QImage.Format_RGB32)
        self.image.fill(Qt.white)
        self.drawing = False
        self.brush_size = 30
        self.brush_color = Qt.black
        self.last_point = QPoint()
        self.loaded_model = None
        self.initUI()

    def initUI(self):
        menubar = self.menuBar()
        menubar.setNativeMenuBar(False)
        filemenu = menubar.addMenu('File')

        load_model_action = QAction('Load model', self)
        load_model_action.setShortcut('Ctrl+L')
        load_model_action.triggered.connect(self.load_model)

        save_action = QAction('Save', self)
        save_action.setShortcut('Ctrl+S')
        save_action.triggered.connect(self.save)

        clear_action = QAction('Clear', self)
        clear_action.setShortcut('Ctrl+C')
        clear_action.triggered.connect(self.clear)

        filemenu.addAction(load_model_action)
        filemenu.addAction(save_action)
        filemenu.addAction(clear_action)

        self.statusbar = self.statusBar()

        self.setWindowTitle('MNIST Classifier')
        self.setGeometry(300, 300, 400, 400)
        self.show()

    def paintEvent(self, e):
        canvas = QPainter(self)
        canvas.drawImage(self.rect(), self.image, self.image.rect())

    def mousePressEvent(self, e):
        if e.button() == Qt.LeftButton:
            self.drawing = True
            self.last_point = e.pos()

    def mouseMoveEvent(self, e):
        if (e.buttons() & Qt.LeftButton) & self.drawing:
            painter = QPainter(self.image)
            painter.setPen(QPen(self.brush_color, self.brush_size, Qt.SolidLine, Qt.RoundCap))
            painter.drawLine(self.last_point, e.pos())
            self.last_point = e.pos()
            self.update()

    def mouseReleaseEvent(self, e):
        if e.button() == Qt.LeftButton:
            self.drawing = False

            arr = np.zeros((28, 28))
            for i in range(28):
                for j in range(28):
                    arr[j, i] = 1 - self.image.scaled(28, 28).pixelColor(i, j).getRgb()[0] / 255.0
            arr = arr.reshape(-1, 28, 28)

            if self.loaded_model:
                pred = self.loaded_model.predict(arr)[0]
                pred_num = str(np.argmax(pred))
                self.statusbar.showMessage('숫자 ' + pred_num + '입니다.')

    def load_model(self):
        fname, _ = QFileDialog.getOpenFileName(self, 'Load Model', '')

        if fname:
            self.loaded_model = tf.keras.models.load_model(fname)
            self.statusbar.showMessage('Model loaded.')

    def save(self):
        fpath, _ = QFileDialog.getSaveFileName(self, 'Save Image', '', "PNG(*.png);;JPEG(*.jpg *.jpeg);;All Files(*.*) ")

        if fpath:
            self.image.scaled(28, 28).save(fpath)

    def clear(self):
        self.image.fill(Qt.white)
        self.update()
        self.statusbar.clearMessage()


if __name__ == '__main__':
    app = QApplication(sys.argv)
    ex = MyApp()
    sys.exit(app.exec_())

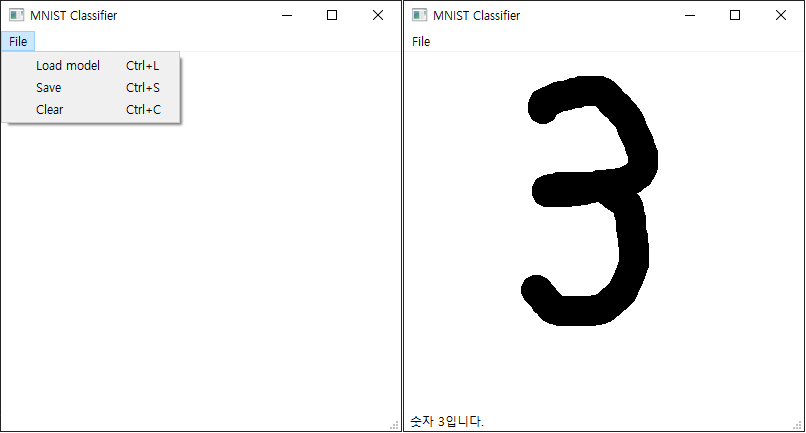

모델을 로드하고 숫자를 입력

로드된 MNIST 모델이 그려진 이미지를 인식하여 숫자로 결과를 출력하는 것을 볼 수 있다.

코드 참조 : https://codetorial.net/pyqt5/examples/mnist_classifier.html
